Extras for radiant heaters

FREE design stand solution, LIFT system, weather protection, and more

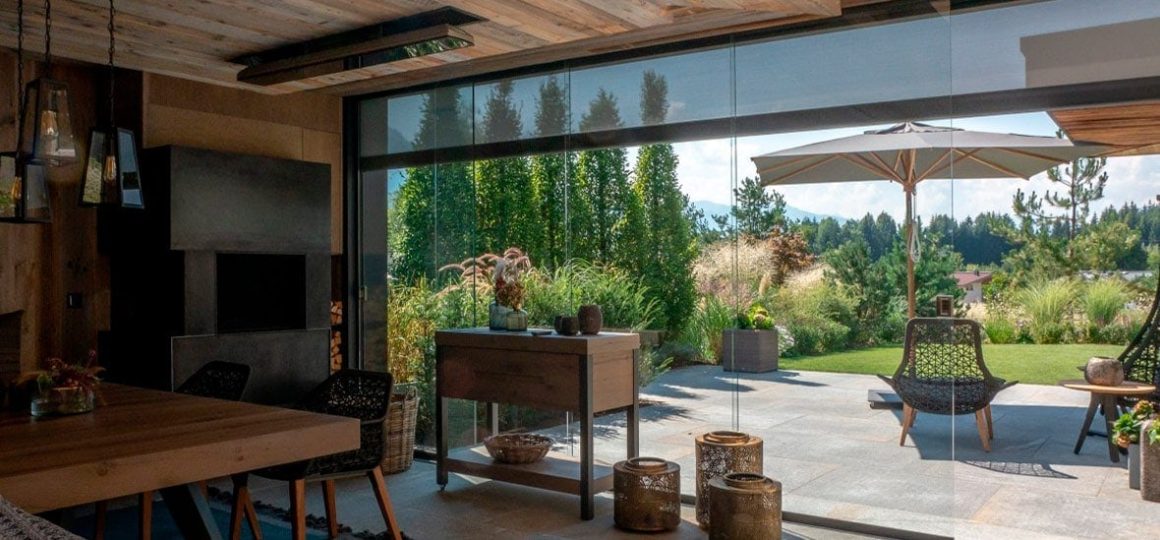

HEATSCOPE LIFT plus VISION Heizstrahler, Wintergarten-Installation in Tirol, Oesterreich

“A radiant heater is only as good as what you can do with it”

Extras and accessories exclusively for HEATSCOPE® radiant heaters

Particular attention is given to efficiency at HEATSCOPE®! All VISION, SPOT or PURE heaters were developed according to the latest findings in the fast infrared mid-wave range. For instance, between 90% and 94% of the energy used is directly converted into heat.

The same applies to the accessories and extras with which you can equip HEATSCOPE® radiant heaters: such as the FREE design stand systems for free installation at any location.

Or the LIFT for flush mount ceiling installation. Everything that ensures you get the precise installation you imagine!

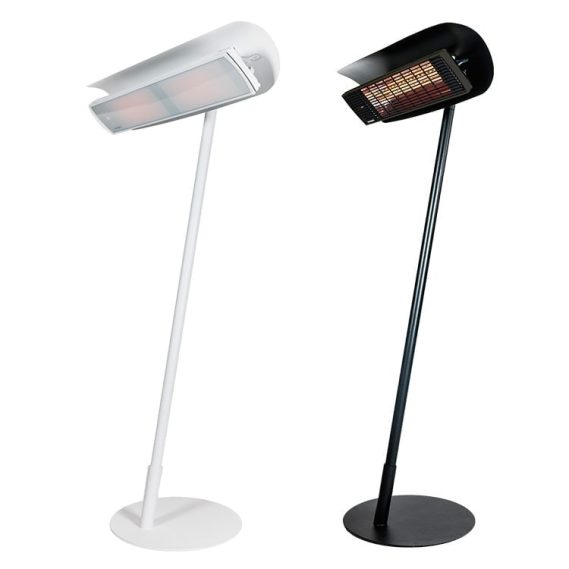

HEATSCOPE® FREE design stand solution

Pleasant heat at any location – independent of walls, wind and weather

Normally, HEATSCOPE® VISION ambient and SPOT power heaters are installed on walls or ceilings. However, in order to also be able to use the heaters in a flexible manner on terraces or in the garden, the HEATSCOPE® FREE design stand solution was developed (design: Bjørn Blisse).

With the help of the HEATSCOPE® FREE, there is heat at any location in the garden or on the terrace. The top of the heater is protected from rain by a concave weather protection shield, on the inside the integrated anti-tilt system turns the heater off automatically if it is tilted too far.

The HEATSCOPE® FREE was exclusively designed and developed for the HEATSCOPE® model ranges VISION and SPOT. It does not work with the design heater PURE or with radiant heaters from other manufacturers.

SPECIFICATIONS:

  • Galvanised steel base in white or black
  • Head made of powder-coated stainless steel in black or white
  • Weather protection made from powder-coated aluminium in black or white
  • Connection bar made from powder-coated aluminium in black, white or teakwood look
  • entirely weatherproof
  • Supplied with open cable and enclosed Schuko plug

All HEATSCOPE® FREE models + specifications:

All sizes are available in all colours. Radiant heaters are not included in delivery.

HEATSCOPE FREE 3.5 + SPOT AB

Colour: AllBlack
Dimensions (LxWxH): 2163 x 980 x ø 610 mm
Weight: 38.7 kg (without heater)
suitable models:
MHS-SP2200, MHS-SP2800, MHS-VT1600

HEATSCOPE FREE 4 + VISION WT

Colour: White
Dimensions (LxWxH): 2163 x 1240 x ø 610 mm
Weight: 39.3 kg (without heater)
suitable models:
MHS-VT2200

HEATSCOPE FREE 5 + VISION BK

Colour: Black/Wood
Dimensions (LxWxH): 2163 x 1240 x ø 610 mm
Weight: 39.3 kg (without heater)
suitable models:
MHS-VT3200

HEATSCOPE FREE 4 + VISION WT

Colour: White/Wood
Dimensions (LxWxH): 2163 x 1240 x ø 610 mm
Weight: 39.3 kg (without heater)
suitable models:
MHS-VT2200

HEATSCOPE Free design stand solution at a pool in Germany

Any questions?

We are here for you!

Christian Luge

Jeanette Kinzler

Susanne Bartsch

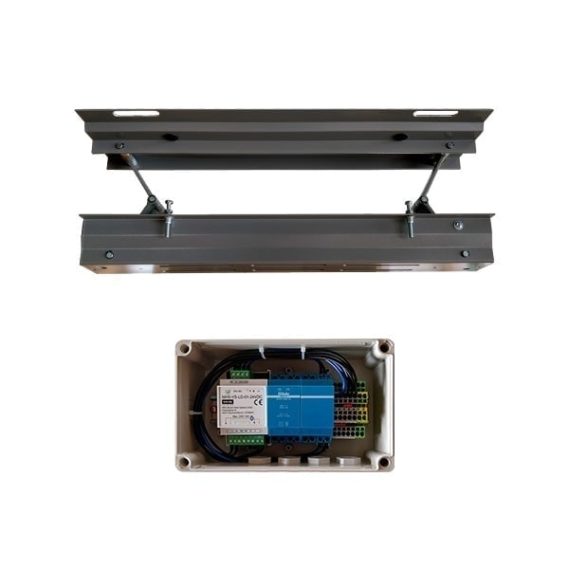

HEATSCOPE® LIFT system plus installation box

For the flush mount ceiling installation of HEATSCOPE® VISION and SPOT heaters

HEATSCOPE® also provides a separate, unique solution for flush-mounted ceiling installation: a LIFT system moves the heater approx. 12 cm out of the ceiling opening as soon as it is switched on. The heater is automatically retracted again after a short cooling-off period (3 minutes).

Furthermore, there are also separate installation boxes as well as covers/frames available, which close the ceiling opening in a uniform and beautiful manner.

HEATSCOPE® LIFT + BOX + FRAME:

Standard colour is white. Radiant heaters are not included in delivery.

HEATSCOPE LIFT

Dimensions (LxWxH): 584 x 207 x 100 mm
Weight: 4.0 kg (without heater)
suitable models:
SPOT 2200, SPOT 2800, all VISION

Installation with control box in the direct vicinity of the ceiling opening or in a distribution box (series mounting case)

HEATSCOPE BOX

Dimensions (LxWxH): 981 x 270 x 196 mm
Weight: 7.5 kg (without heater)
suitable models:
SPOT 2800

Dimensions (LxWxH): 908 x 270 x 196 mm
Weight: 7.0 kg (without heater)
suitable models:
SPOT 2200, VISION 1600

Dimensions (LxWxH): 1258 x 270 x 196 mm
Weight: 10.0 kg (without heater)
suitable models:
VISION 2200

Dimensions (LxWxH): 1758 x 270 x 196 mm
Weight: 13.0 kg (without heater)
suitable models:
VISION 3200

HEATSCOPE FRAME

Dimensions (LxWxH): 1030 x 281 x 24.5 mm
Weight: 1.6 kg (without heater)

suitable models:
SPOT 2800

Dimensions (LxWxH): 956 x 281 x 24.5 mm
Weight: 1.5 kg (without heater)
suitable models:
SPOT 2200, VISION 1600

Dimensions (LxWxH): 1306 x 281 x 24.5 mm
Weight: 1.9 kg (without heater)
suitable models:
VISION 2200

Dimensions (LxWxH): 1806 x 281 x 24.5 mm
Weight: 2.5 kg (without heater)
suitable models:
VISION 3200

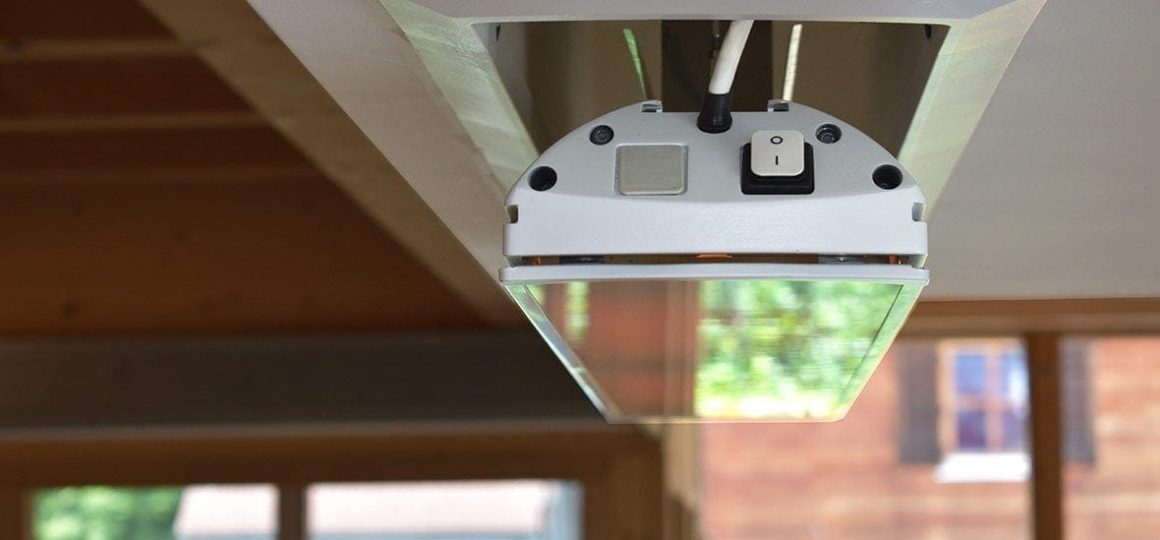

HEATSCOPE Lift, flush mounted heater, Germany

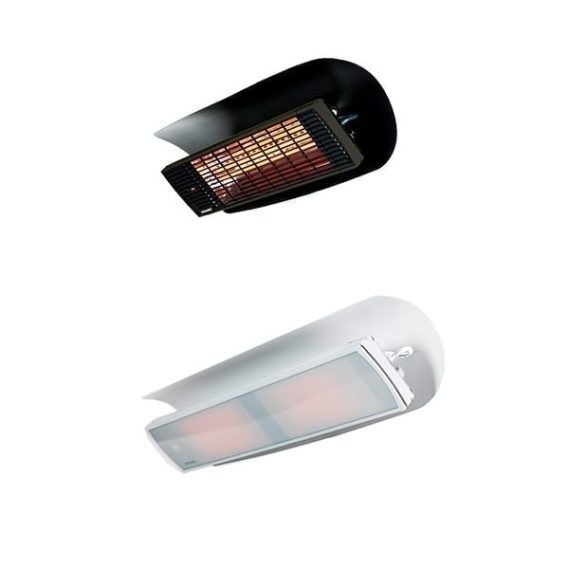

HEATSCOPE® weather protection system

For the installation of HEATSCOPE® VISION and SPOT heaters in uncovered areas

HEATSCOPE® design heaters must be protected against rain and other weather influences on the rear side. This is best achieved by installing them under a roof or canopy. If this is not possible, a weather protection shield in the corresponding colour of black or white is obligatory.

The HEATSCOPE® weather protection plates effectively protect the radiant heaters against continuous rain at uncovered locations. The design – as in the case of the FREE design stand system and the new generation of PURE heaters – is by Bjørn Blisse.

SPECIFICATIONS:

  • Weather protection made from powder-coated aluminium in black or white
  • entirely weatherproof + suitable for outdoors
  • 100% compatible with installation brackets for the HEATSCOPE® VISION ambient heaters and SPOT power heaters

HEATSCOPE® SHIELD weather protection

All sizes are available in all colours. Radiant heaters are not included in delivery.

HEATSCOPE® Weather protection 3

Dimensions (LxWxH): 107 x 980 x 329 mm
Weight: 1.84 kg (without heater)
suitable models:
SPOT 2200, SPOT 2800, VISION 1600

HEATSCOPE® Weather protection 4

Dimensions (LxWxH): 107 x 1240 x 329 mm
Weight: 2.56 kg (without heater)
suitable models:
VISION 2200

HEATSCOPE® Weather protection 5

Dimensions (LxWxH): 107 x 1750 x 329 mm
Weight: 3.61 kg (without heater)
suitable models:
VISION 3200

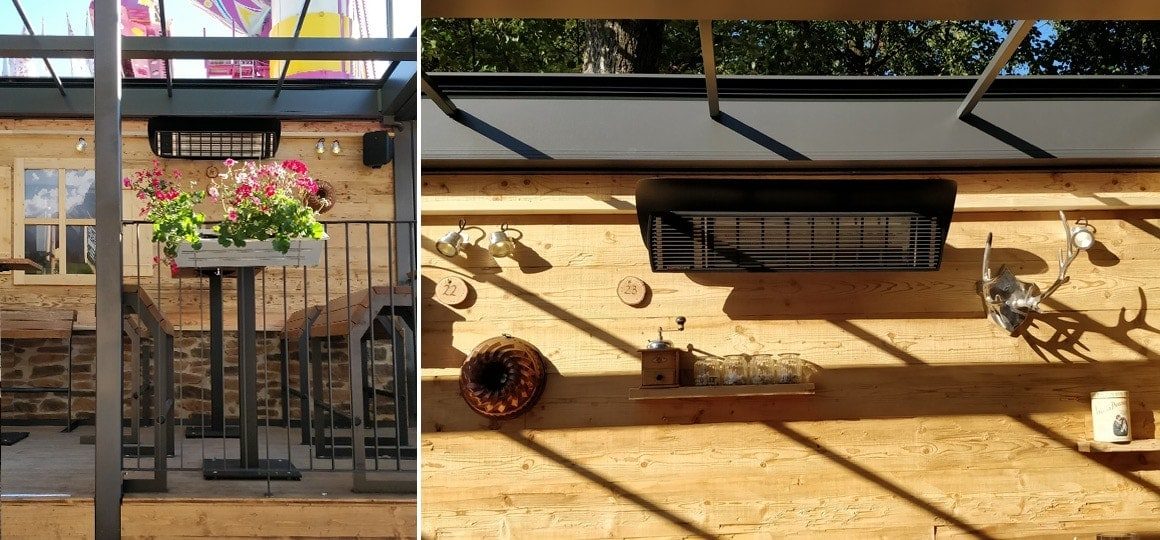

HEATSCOPE Wetterschutz fuer unueberdachte Installationen Cafe Guglhupf Oktoberfest Muenchen
