All heater types + models: VISION, SPOT, PURE

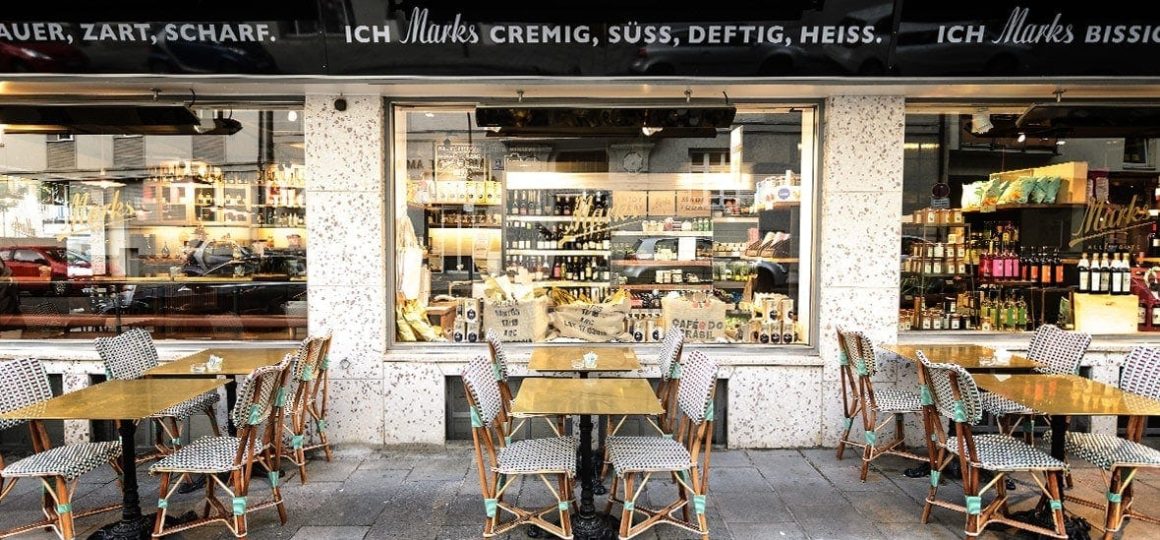

HEATSCOPE Vision: discret ambient heater at Cafe Marks, Munich

HEATSCOPE® – natural thermal output “Made in Germany”

for all indoor & outdoor areas, for conservatories & greenhouses

HEATSCOPE®. Creating. Pleasant. Heat. That is the motto that connects all HEATSCOPE® radiant heaters to one another. At the same time, design is always the first priority. Paired with efficiency and reducing the created light output.

And so, different model series and types of radiant heaters were developed, which, in their own right, combine specific characteristics and advantages for the most diverse installation environments and areas of application.

In general, HEATSCOPE® radiant heaters are distinguished by the following characteristics:

  • 100% Made in Germany – all radiant heaters are
    designed, developed and produced in Germany
  • pleasant, compatible thermal output
    with infrared range “B” – (ultra-rapid) mid-wave
  • award-winning product design (RedDot Design Award for the PURE) – construction and design are always inextricably linked

Any questions?

We are here for you!

Christian Luge

Jeanette Kinzler

Susanne Bartsch

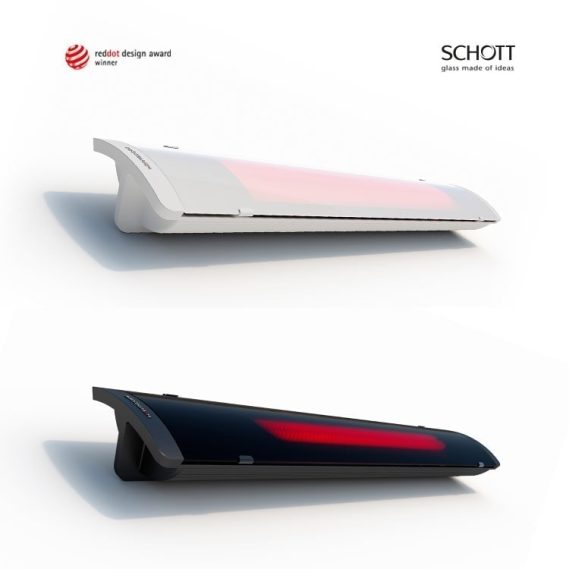

HEATSCOPE® PURE design heaters

Award-winning design – excellent thermal output

HEATSCOPE® design heater PURE is the first radiant heater worldwide, which was equipped with a convex SCHOTT NEXTREMA® glass front.

It not only looks very stylish but also has a concrete technological background. Due to the curvature, the heating elements can be placed even closer to the already only 2mm thin glass. This results in these heating even more efficiently, the heat can be felt more directly.

At the same time, the heat has a very pleasant effect on the skin. The infrared wave range “B” (mid-wave) only penetrates into the upper skin layers, the feeling equals that of a mild day in late summer, on which you would gladly leave your jacket at home.

The PURE design heaters are mainly used under pergolas, on terraces, loggias or also in (unheated) conservatories and greenhouses – everywhere, where quickly enjoyable heat is required in the RedDot Design Award winning style. The PURE can be installed everywhere – even outdoors – without additional protection because of the protection class IP65.

You can find all features of the individual HEATSCOPE® PURE design heaters on the HEATSCOPE® PURE product page »

All HEATSCOPE® PURE are equipped with a convex shaped, heat, cold and weather resistant industrial ceramic glass front from SCHOTT NEXTREMA® and are solely controllable externally (for instance using a smart home system, home control [somfy, Elsner, KNX or the like]) (ON/OFF, 50% + 100% power levels).

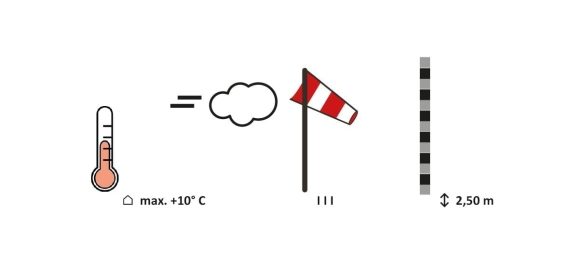

Installation requirements of HEATSCOPE® PURE

  • Protection class IP65
    free installation without weatherproofing possible
  • external control (using switch) or integration in smart control systems (somfy, KNX, Elsner, etc.)
  • 2.50 m maximum installation height
    vertical, horizontal or diagonal installation possible
  • max. +10.5°C temperature rise (measured in closed room at 16°C [no wind] within 30 minutes)
  • can also be used at light to moderate winds
  • for indoor and outdoor use

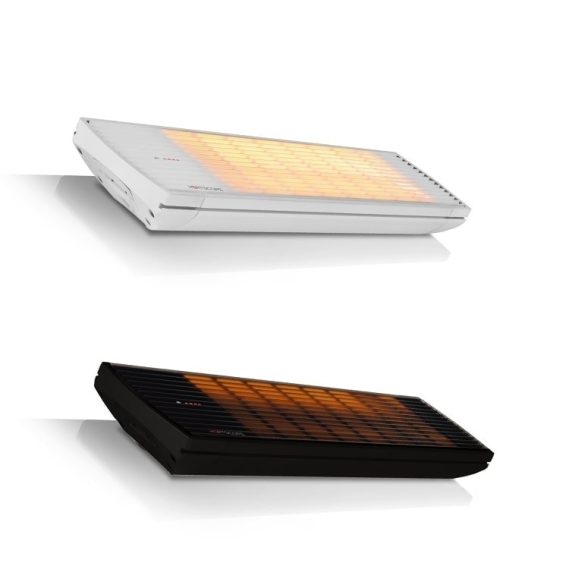

HEATSCOPE® VISION ambient heater

Less light – more heat!

HEATSCOPE® ambient heaters VISION are distinguished by their extremely subtle, slightly orange coloured ambient lighting with a simultaneously powerful thermal output. This reduction in light output is made possible by a SCHOTT NEXTREMA® industrial ceramic glass front. It effectively blocks the light output but at the same time, allows as much infrared thermal radiation as possible to pass through.

Our slogan “less light, more heat” puts it in a nutshell.

The Vision infrared heaters are mainly used on half-open terraces, loggias, porches or also in (unheated) conservatories and greenhouses – simply everywhere, where high quality quickly enjoyable heat is desired.

You can find all features of the individual HEATSCOPE® VISION ambient heaters on the HEATSCOPE® VISION product page »

All HEATSCOPE® VISION are equipped with a heat, cold and weather resistant industrial ceramic glass front from SCHOTT NEXTREMA® and are optionally externally controllable (for instance using a smart home system, home control [somfy, Elsner, KNX or the like]) or using a separate IR remote control (ON/OFF, 50% + 100% power levels).

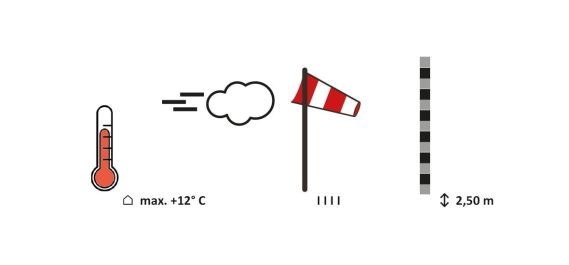

Installation requirements HEATSCOPE® VISION

  • Protection class IP44
    Installation in covered areas or with weatherproofing
  • external control and integration in smart control systems (somfy, KNX, Elsner, etc.) or
  • control using separate remote control
  • 2.50 m maximum installation height
    only horizontal installation
  • max. +8.5°C temperature rise (measured in closed room at 16°C [no wind] within 30 minutes)
  • perfect in wind-protected areas; can even be used with slight influences from wind
  • for indoor and outdoor use

HEATSCOPE® SPOT power heater

Small powerhouses – no compromises.

HEATSCOPE® SPOT power heaters are truly small powerhouses. Merely protected by a fin screen, the twin carbon heating elements create concentrated, direct heat here.

Consequently, the SPOT can also be used at exposed locations and even at installation heights up to 3 metres.

And, the light emitted from the SPOT power heaters is also extremely subtle. Due to the carbon heating elements used, only about 30% of the light output of halogen radiant heaters, which are often used by competitors, is generated.

The SPOT infrared heater is mainly used on open, exposed terraces, balconies or at events – everywhere, where powerful heat is required independent of the installation location, wind and weather influences.

You can find all features of the individual HEATSCOPE® SPOT power heaters on the HEATSCOPE® SPOT product page »

The HEATSCOPE® SPOT is always equipped with a colour-matched fin safety screen and is optionally externally controllable (for instance using a home control unit [somfy, Elsner, KNX or the like]) or using a separate remote control (ON/OFF, 50% + 100% power levels).

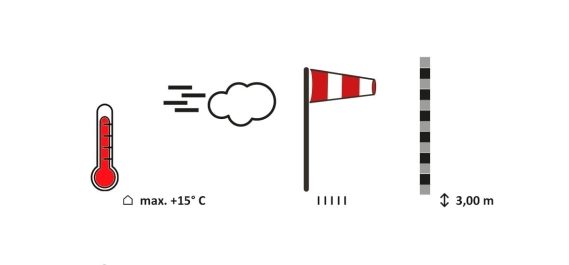

Installation requirements HEATSCOPE® SPOT

  • Protection class IP24
    Installation in covered areas or with weatherproofing
  • external control and integration in smart control systems (somfy, KNX, Elsner, etc.) or control using separate remote control
  • 3.00 m maximum installation height
  • only horizontal installation
  • max. +12.5°C temperature rise (measured in closed room at 16°C [no wind] within 30 minutes)
  • can also be used at exposed locations and
    in more severe wind conditions
  • for indoor and outdoor use
