HEATSCOPE® SPOT
little power packs, no compromises

HEATSCOPE Spot power heater, private estate, Emsdetten

HEATSCOPE® SPOT power heaters

with fin front screen    |   for wind exposed areas and hospitality (indoors & outdoors)    |   fexternally or with remote control controllable

HEATSCOPE power heaters SPOT with the best performance & reduced light offers strong heat with significantly reduced light (maximum 600 lumen). Two carbon heating elements within the fast infrared medium wave produce cozy, immediately noticeable warmth and a slightly orange ambience light. The SPOT power heaters are especially suitable for the use in wind sensitive areas because of the fast IR medium waves, depending on the environment it is even possible to install the heater up to 3 meters above the ground.

You can find all performance details of the individual HEATSCOPE SPOT power heaters with the highest performance and reduced light next to the respective heater size.

With colour-coordinated slats protective grille – made in Germany.

All HEATSCOPE® SPOT modells+ specifications:

HEATSCOPE® SPOT 1600W

Performance: 1600 W / 6,96 A
Measurements (LxWxH): 670 x 184 x 78 mm
Weight: 4,0 kg

Titan Black 1600
Basic model: MHS-SM1600BK.100
Plus mode*: MHS-SP1600BK.100

White 1600
Basic model: MHS-SM1600WT.100
Plus mode*: MHS-SP1600WT.100

AllBlack 1600
Basic model: MHS-SM1600AB.100
Plus mode*: MHS-SP1600AB.100

HEATSCOPE® SPOT 2200W

Performance: 2200 W / 9,57 A
Measurements (LxWxH): 810 x 184 x 78 mm
Weight: 4,5 kg

Titan Black 2200
Basic model: MHS-SM2200BK.100
Plus mode*: MHS-SP2200BK.100

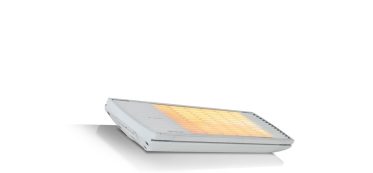

White 2200
Basic model: MHS-SM2200WT.100
Plus mode*: MHS-SP2200WT.100

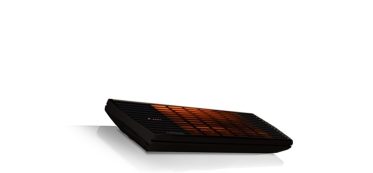

AllBlack 2200
Basic model: MHS-SM2200AB.100
Plus mode*: MHS-SP2200AB.100

HEATSCOPE® SPOT 2800W

Performance: 2800 W / 12,17 A
Measurements (LxWxH): 884 x 184 x 78 mm
Weight: 5,0 kg

Titan Black 2800
Basic model: MHS-SM2800BK.100
Plus mode*: MHS-SP2800BK.100

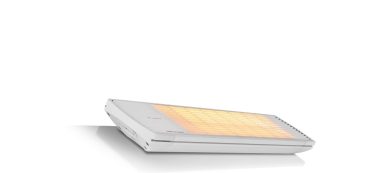

White 2800
Basic model: MHS-SM2800WT.100
Plus mode*: MHS-SP2800WT.100

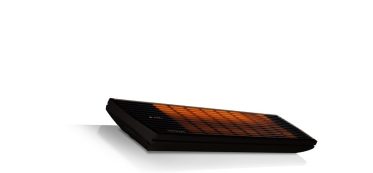

AllBlack 2800
Basic model: MHS-SM2800AB.100
Plus mode*: MHS-SP2800AB.100

Equipment basic / plus models

basic: external remote, integrable in home systems e.g. comfy, KNX, Elsner etc.

plus models include own infrared remote control and hand radio transmitter

ATTENTION: IR remote control are NOT retrofittable since they are two completely different radiant heater types.

Installation accessories included

mounting equipment assembled:
max. height 120mm (incl. mounting bracket)

Installation requirements

Can be combined with the design stand solution HEATSCOPE FREE.

Specifications HEATSCOPE® SPOT

  • black or white slats protective grille
  • white, titan or black coated aluminium body
  • energy efficient double-carbon-heating elements with satin surface
  • patented reflector-heating-system with ventilated back
  • Basic version: ON/OFF switch + two manually controllable heat tiers (100% + 50%)
  • Plus version: ON/OFF switch + two via IR control remote controllable heat tiers (100% + 50%)
  • incl. all equipment for wall or ceiling installations

Performance characteristics power heater:

Performance characteristics ambience heater:

– performance: 1600 W, 2200 W, 2800 W

– visible light: < 600 Lumen

– radiant efficiency: ≥ 94%

– max. performance in < 15 seconds

– protection class: IP24



All basic models (SPOT SM-Series) combined with a DEVIreg Smart Thermostat meet all requirements of the EU regulations 2015/1188 of the eco design directive 2009/125/EG)

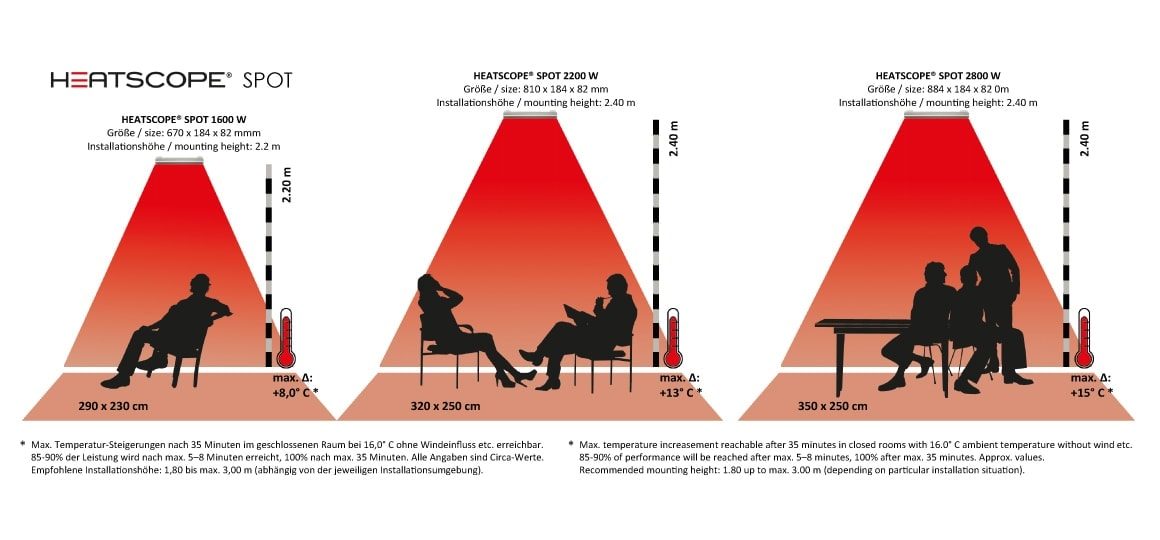

Please include the following points in your plans:

Please note that the best performance depends on several factors. Including:

  • environment (indoors or outdoors, closed or open, wind sensitive or protected)
  • height of installation (1,80-3,00m)
  • beam angel
  • wind and weather influences
  • voltage fluctuations

Any questions?

We are here for you!

Christian Luge

Jeanette Kinzler

Susanne Bartsch

All heating solutions

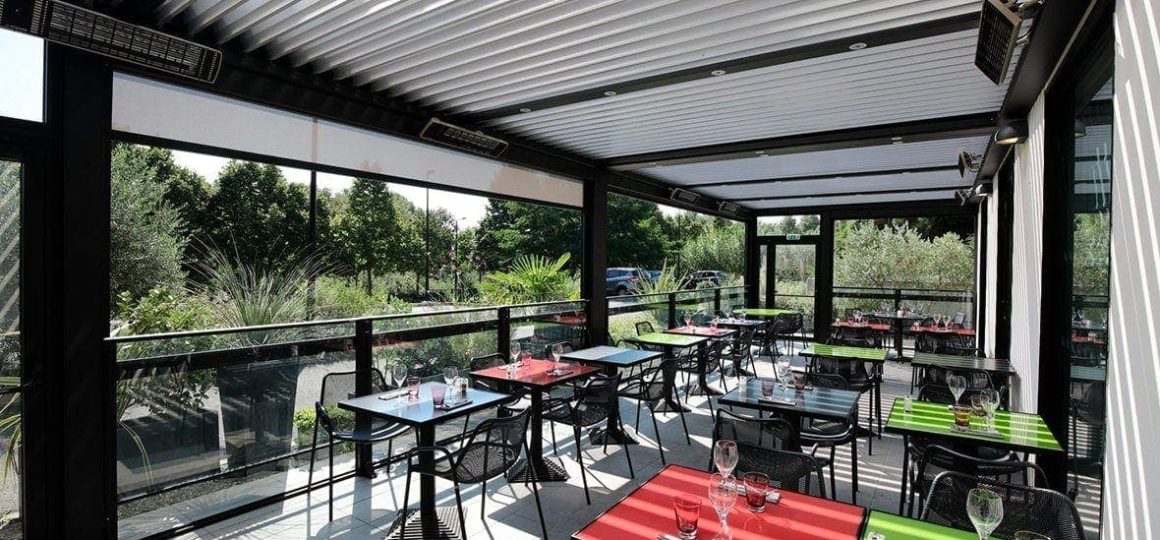

HEATSCOPE Spot Power-Heizstrahler, Restaurant-Pergola-Installation, Frankreich
