HEATSCOPE® PURE
Awarded design, excellent heat performance

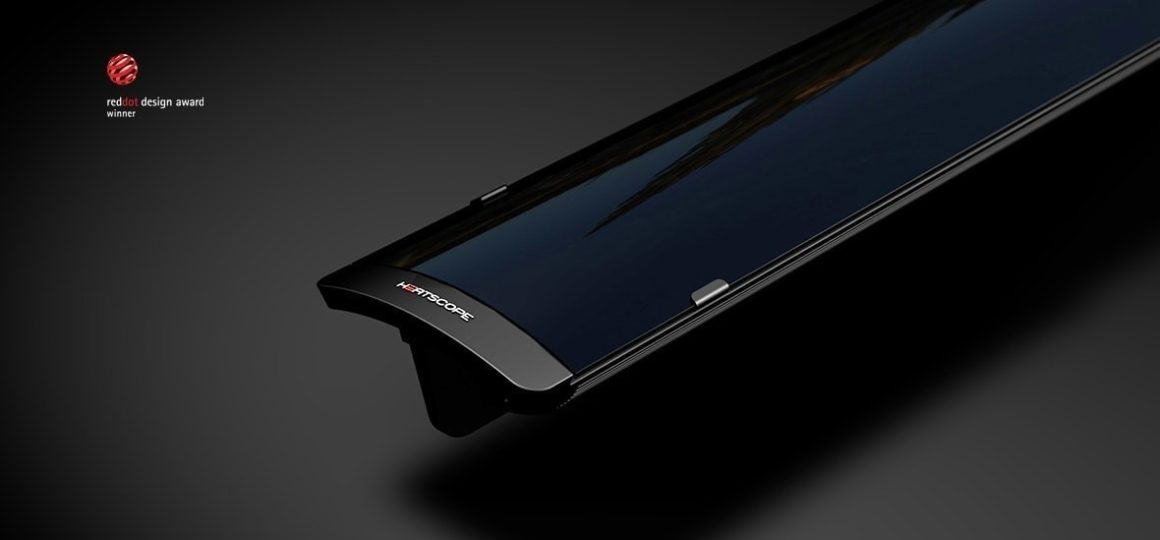

HEATSCOPE PURE RedDot Design Award Winner

HEATSCOPE® PURE design heater

with a curved SCHOTT NEXTREMA glass front    |   for pergolas, glass houses, in- and outdoor areas    |   externally controllable

The HEATSCOPE PURE is the only heater worldwide, that is equipped with a convex SCHOTT NEXTREMA glass front.   The glass primarily serves a technical purpose: Due to the curvature, the carbon heating elements are placed directly behind the glass front and therefore, give off even more heat in the A-shaped heating corridor below – and all this with significantly reduced light.

That is why the HEATSCOPE PURE heaters, designed by Design Studio Bjørn Blisse, were awarded with the RedDot Design Award 2018.   With the heat, cold and weather resistent glass front by SCHOTT NEXTREMA with ideal convex curvature – made in Germany.

All HEATSCOPE® PURE models + specifications:

PURE HEATING + DESIGN

+ innovative technology, RedDot winning design by Bjørn Blisse

+ horizontally and vertically mountable – incl. cable with connector

+ only one mounting bracket – mounted in less than no time

+ IP65 rating – installation without any weather shield!

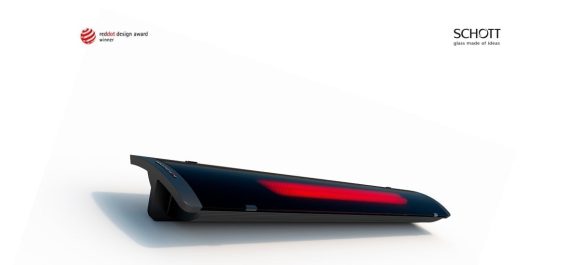

HEATSCOPE® PURE 2400W AB

Basic-Model: MHS-PE2400AB.100 Performance: 2400 W / 10,43 A Measurements (LxWxH): 1044 x 166 x 87mm Weight: 5,6 kg

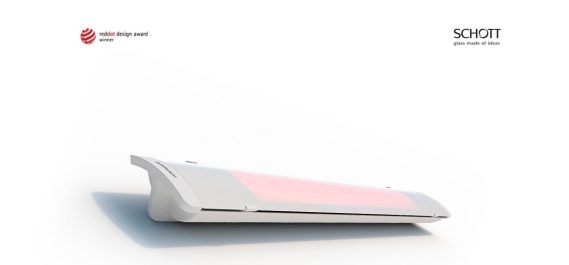

HEATSCOPE® PURE 2400W WT

Basic-Model: MHS-PE2400WT.100 Performance: 2400 W / 10,43 A Measurements (LxWxH): 1044 x 166 x 87mm Weight: 5,6 kg

uipment Basic Model:

Basic models: external remote, integrable in home systems, e.g. somfy, KNX, Elsner etc. (Starting 2020 possibility to upgrade with a SmartBox control unit for controlling with IR remote control)

Installation equipment always included:

  • only one mounting bracket
  • assembled in a few simple steps
  • distance max. 140mm

Installation requirements

Specifications HEATSCOPE® PURE

  • convex shaped black or white front screen
  • high performance industry-glass-ceramics SCHOTT NEXTREMA
  • black or white coated aluminium body
  • energy efficient double-carbon-heating elements directly placed behind curved glass front
  • patented reflector-heating-system with ventilated back
  • visible light: < 300 Lumen
  • radiant efficiency: ≥90%
  • max. performance within <20-30 seconds
  • protection class: IP65

Specifications of the design heaters

  • power: 2400W
  • visible light: < 300 Lumen
  • radiant efficiency: ≥90%
  • max. performance within <20-30 seconds
  • protection class: IP65

All basic models (PURE PE-Series) combined with a DEVIreg Smart Thermostat meet all requirements of the EU regulations 2015/1188 of the eco design directive 2009/125/EG)

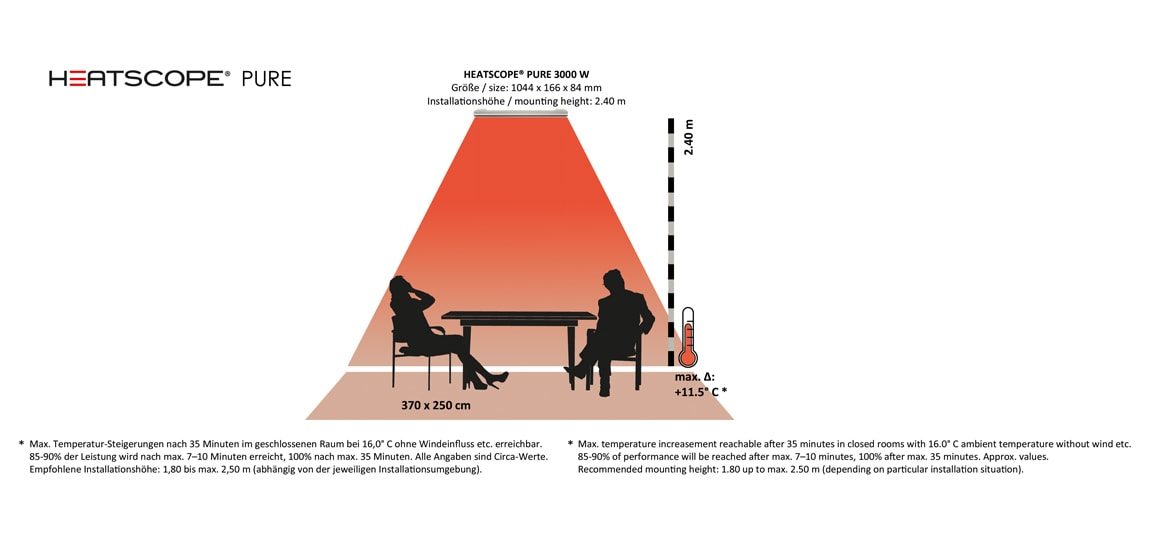

Please include the following points in your plans: Please note that the best performance depends on several factors. Including:

  • environment (indoors or outdoors, closed or open, wind sensitive or protected)
  • height of installation (1,80-2,50m)
  • beam angel
  • wind and weather influences
  • voltage fluctuations
HEATSCOPE SmartBox: Steuereinheit fuer manuell steuerbare Infrarot-Heizstrahler

HEATSCOPE® SmartBox design control unit

with convex front    |   for all manual controlable HEATSCOPE® heaters   |   infrared and somfy® compatible

SMARTBOX is THE control unit for HEATSCOPE® PURE design heaters!
Just mount it between power supply and heater – and it‘s possible to control
the HEATSCOPE® heater with the included IR remote control, to switch the
PURE ON and OFF, to regulate it down on 50% power or to regulate it back
again on full 100% output.

And if you have a somfy® I/O control unit already in action, you will love the
SMARTBOX somfy® version for integration in your existing I/O system.
No need to hide big actuators anymore – it‘s all inside the small box now!

All HEATSCOPE® SmartBox models + specifictions:

SMART CONTROL

+ innovative technology, design mady by Bjørn Blisse

+ installation horizontal & vertical possible –
with the heater or just beneath it etc.

+ combi mounting bracket –
for installation together with the heater

+ IP protection class IP65 –
installation without any weather shield!

HEATSCOPE® SmartBox AB

MHS-SBOXI-AB.100 (incl. IR remote control)

power connection: 220–240 V AC~
weight: 0,35 kg / 0,51 kg incl. mounting bracket
measurements SmartBox: 100 x 170 x 35.5 mm
protection class: I P65

HEATSCOPE® SmartBox WT

MHS-SBOXI-WT.100 (incl. IR remote control)

power connection: 220–240 V AC~
weight: 0,35 kg / 0,51 kg incl. mounting bracket
measurements SmartBox: 100 x 170 x 35.5 mm
protection class: I P65

Specifications HEATSCOPE® SmartBox

  • convex formed black or white translucent front screen.
    Black or white housing (corresponding with PURE heater)
  • controlled via HEATSCOPE® infrared remote control or with somfy® I/O
  • mounting panel included for installation with PURE heater
  • remote control + batteries within scope of delivery (excl. somfy® I/O)
  • automatic shutdown after 4, 6 or 8 hours (deactivation possible)
  • idea + design: Studio Bjørn Blisse

Technical specifications smart control unit

  • power connection: 220–240 V AC~
  • weight: 0,35 kg / 0,51 kg incl. mounting bracket
  • measurements SmartBox: 100 x 170 x 35.5 mm
  • protection class: I P65
