HEATSCOPE^® SmartBox
control unit for manual switchable infrared heaters

HEATSCOPE^® SmartBox design control unit

with convex front | for all manual controlable HEATSCOPE^® heaters | infrared and somfy^® compatible

SMARTBOX is THE control unit for HEATSCOPE^® PURE design heaters!
Just mount it between power supply and heater – and it‘s possible to control
the HEATSCOPE^® heater with the included IR remote control, to switch the
PURE ON and OFF, to regulate it down on 50% power or to regulate it back
again on full 100% output.

And if you have a somfy^® I/O control unit already in action, you will love the
SMARTBOX somfy^® version for integration in your existing I/O system.
No need to hide big actuators anymore – it‘s all inside the small box now!

All HEATSCOPE^® SmartBox models + specifictions:

SMART CONTROL

+ innovative technology, design made by Bjørn Blisse

+ installation horizontal & vertical possible – with the heater or just beneath it etc.

+ combi mounting bracket – for installation together with the heater

+ IP protection class IP65 – installation without any weather shield!

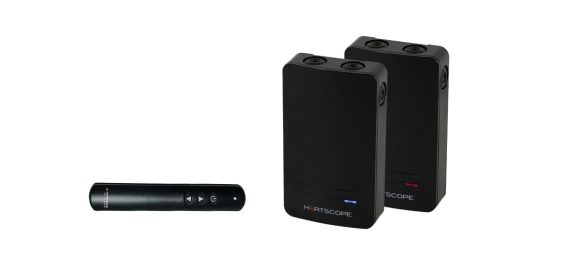

HEATSCOPE^® SmartBox AB

MHS-SBOXI-AB.100 (incl. IR remote control)

power connection: 220–240 V AC~
weight: 0,35 kg / 0,51 kg incl. mounting bracket
measurements SmartBox: 100 x 170 x 35.5 mm
protection class: IP65

HEATSCOPE^® SmartBox WT

MHS-SBOXI-WT.100 (incl. IR remote control)

power connection: 220–240 V AC~
weight: 0,35 kg / 0,51 kg incl. mounting bracket
measurements SmartBox: 100 x 170 x 35.5 mm
protection class: IP65

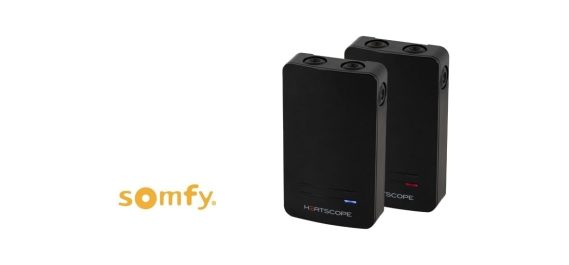

HEATSCOPE^® SmartBox AB somfy^®

MHS-SBOXS-AB.100 (WITHOUT somfy^® remote control)

power connection: 220–240 V AC~
weight: 0,35 kg / 0,51 kg incl. mounting bracket
measurements SmartBox: 100 x 170 x 35.5 mm
protection class: IP65

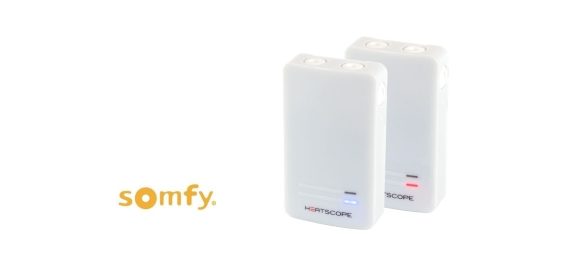

HEATSCOPE^® SmartBox WT somfy^®

MHS-SBOXS-WT.100 (WITHOUT somfy^® remote control)

power connection: 220–240 V AC~
weight: 0,35 kg / 0,51 kg incl. mounting bracket
measurements SmartBox: 100 x 170 x 35.5 mm
protection class: IP65

Specifications HEATSCOPE^® SmartBox

convex formed black or white translucent front screen.
Black or white housing (corresponding with PURE heater)
controlled via HEATSCOPE® infrared remote control or with somfy® I/O
mounting panel included for installation with PURE heater
remote control + batteries within scope of delivery (excl. somfy® I/O)
automatic shutdown after 4, 6 or 8 hours (deactivation possible)
idea + design: Studio Bjørn Blisse
