HEATSCOPE® NEXT
Sustainable design, perfect heat

HEATSCOPE-NEXT-energy-heaters-German-Design-Award-Winner

HEATSCOPE® NEXT energy heaters

with convex shaped Y-heat-protective grid |   for elevated exposed outdoor areas + hospitality   |   externally controlable

Much more heat

NEXT ist the next step of heating outdoor areas, conservatories and pergolas in the most beautiful and sustainable way.

Always following the elementary principle of all HEATSCOPE® heaters:
„Less light“ – „more heat“.

In other words: The previous concept for infrared radiant heaters has been turned upside down for the NEXT and thought of in a completely new way. In conventional heaters, the heat arises as part of the process of generating light (for example using halogen light tubes or quartz elements). At HEATSCOPE® we’ve adopted a new way of doing things.

In this newly developed concept for radiant heaters two carbon fibre spirals are charged with an electric current, and they begin to glow and heat up. So alongside the immediately noticeable rise in temperature, there is a subtle, orange-coloured ambient light.

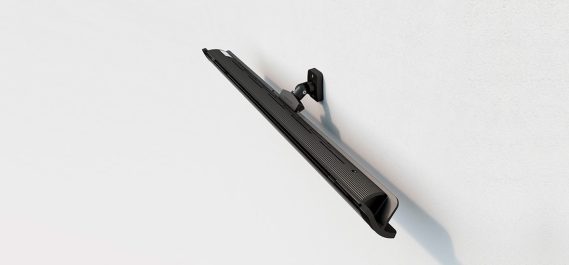

Easily mounted

The HEATSCOPE® NEXT comes with a new, colourful fitted bracket for ceiling or wall mounting. The included wall or ceiling bracket only requires two screws to be attached securely.

The radiator is then held only by a clamping rail. On the back of the casing there is a nut which is used to fix it. Finally, the radiator can be oriented to the desired angle using the swivel joint. With this tool installation will become a pushover.

Perfectly made

The unique shape of the NEXT grid is not only a design feature. It was made like this due to performance reasons.

With the convex curved grid the carbon heating elements can be placed even closer behind the front. Now the highest possible heating output is reachable.
The Y-designed grid structure serves also the dissipation of heat. Due to the higher heating output the impact to the grid is extreme, so it needed a special form and solution – only with the help of this designthe highest heat output with synchronous relief of the material is possible.

Sustainable invented

The design is one thing. Sustainability the other, which is an important feature of the NEXT. The heater is constructed in a way, that every single
piece is changeable. Every part can be stripped down and can be recyceled after reaching its lifetime (approx. after 10,000 hours heating time).

This eases rare repairs,saves the environment, and is totally sustainable straight from the beginning.

All HEATSCOPE® NEXT models + specifications

NEXT HEATING + ENERGY

+ innovative technology, German Design Award winning design by Bjørn Blisse

+ horizontally and vertically mountable –
incl. cable with connector

+ only one mounting bracket –
mounted in less than no time

+ IP25 rating –
installation without any weather shield!

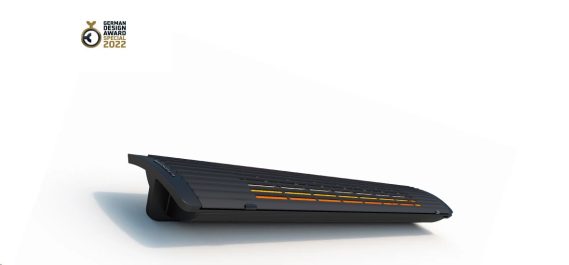

HEATSCOPE® NEXT 3000W AB

Basic model: MHS-NM3000AB.100

Power: 3000 W / 13,04 A
Measurements (LxWxH): 1044 x 166 x 87mm
Weight: 6,5kg

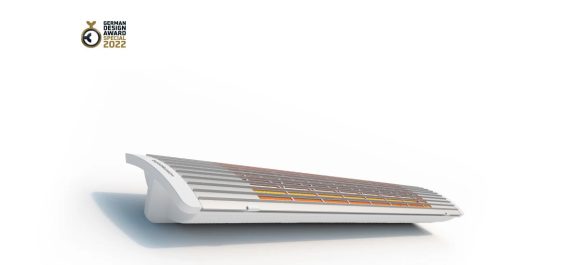

HEATSCOPE® NEXT 3000W WT

Basic model: MHS-NM3000WT.100

Power: 3000 W / 13,04 A
Measurements (LxWxH): 1044 x 166 x 87mm
Weight: 6,5kg

Equipment Basic Model:

Basic models: external remote, integrable in home systems, e.g. somfy, KNX, Elsner etc.

Optional upgrade with a SmartBox control unit for controlling with IR remote control or somfy I/O remote

Installation equipment always included:

  • only one mounting bracket
  • assembled in a few simple steps
  • distance max. 140mm

Installation requirements

Specifications HEATSCOPE® NEXT

  • Black or white coated aluminum body.
  • Convex shaped heat protection fin front with Y-design in black or anodized silver.
  • Energy efficient double carbon heating elements right behind the curved grid.
  • Patented reflector heating system with air-conditioned back.
  • Maximum heat output within approx. 20 seconds.

Sepcifications of the energy heaters

  • power: 3000W
  • visible light: < 600 Lumen
  • radiant efficiency: ≥90%
  • max. performance within <15-20 seconds
  • protection class: IP25



All basic models (NEXT NM-Series) combined with a DEVIreg Smart Thermostat meet all requirements of the EU regulations 2015/1188 of the eco design directive 2009/125/EG)

Please include the following points in your plans:

Please note that the best performance depends on several factors. Including:

  • environment (indoors or outdoors, closed or open, wind sensitive or protected)
  • height of installation (1.80-2.50m)
  • beam angel
  • wind and weather influences
  • voltage fluctuations
HEATSCOPE SmartBox: control unit for manual controlable infrared heaters

HEATSCOPE® SmartBox design control unit

with convex front    |   for all manual controllable HEATSCOPE® heaters   |   infrared and somfy® compatible

SMARTBOX is THE control unit for HEATSCOPE® NEXT energy heaters!
Just mount it between power supply and heater – and it‘s possible to control the HEATSCOPE® heater with the included IR remote control, to switch the NEXT ON and OFF, to regulate it down on 50% power or to regulate it back again on full 100% output.

And if you have a somfy® I/O control unit already in action, you will love the SMARTBOX somfy® version for integration in your existing I/O system. No need to hide big actuators anymore – it‘s all inside the small box now!

All HEATSCOPE® SmartBox models + specifictions:

SMART CONTROL

+ innovative technology, design mady by Bjørn Blisse

+ installation horizontal & vertical possible – with the heater or just beneath it etc.

+ combi mounting bracket –
for installation together with the heater

+ IP protection class IP65 –
installation without any weather shield!

HEATSCOPE® SmartBox AB

MHS-SBOXI-AB.100 (incl. IR remote control)

Connection: 220–240 V AC~
Weight: 0,35 kg / 0,51 kg incl. mounting plate
Measurements SMARTBOX: 100 x 170 x 35,5 mm
IP protection class: IP65

HEATSCOPE® SmartBox WT

MHS-SBOXI-WT.100 (incl. IR remote control)

Connection: 220–240 V AC~
Weight: 0,35 kg / 0,51 kg incl. mounting plate
Measurements SMARTBOX: 100 x 170 x 35,5 mm
IP protection class: IP65

HEATSCOPE® SmartBox AB somfy®

MHS-SBOXS-AB.100 (WITHOUT somfy® remote control)

Connection: 220–240 V AC~
Weight: 0,35 kg / 0,51 kg incl. mounting plate
Measurements SMARTBOX: 100 x 170 x 35,5 mm
IP protection class: IP65

HEATSCOPE® SmartBox WT somfy®

MHS-SBOXS-WT.100 (WITHOUT somfy® remote control)

Connection: 220–240 V AC~
Weight: 0,35 kg / 0,51 kg incl. mounting plate
Measurements SMARTBOX: 100 x 170 x 35,5 mm
IP protection class: IP65

Specifications HEATSCOPE® SmartBox

  • convex formed black or white translucent front screen.
    Black or white housing (corresponding with NEXT heater)
  • controlled via HEATSCOPE® infrared remote control or with somfy® I/O
  • mounting panel included for installation with NEXT heater
  • remote control + batteries within scope of delivery (excl. somfy® I/O)
  • automatic shutdown after 4, 6 or 8 hours (deactivation possible)
  • idea + design: Studio Bjørn Blisse

Technical specifications smart control unit

  • power connection: 220–240 V AC~
  • weight: 0,35 kg / 0,51 kg incl. mounting bracket
  • measurements SmartBox: 100 x 170 x 35.5 mm
  • protection class: I P65
